Place of Origin: | CHINA |
Brand Name: | HOBE |
Certification: | CO |
Model Number: | 1100 1050 1060 1070 |
Minimum Order Quantity: | 5 ton |
---|---|
Price: | Negotiation |
Packaging Details: | Pallet or Wooden Case |
Delivery Time: | 15-25days |
Payment Terms: | L/C, D/A, D/P |
Supply Ability: | 1500Ton per Month |
Name: | Aluminum Circle | Thinkness: | 0.3-6mm |
---|---|---|---|
Diameter: | 80-1600mm | Alloy: | 1050/1060/1100/3003/5005/5052/ |
Use: | Pot | Port: | Shanghai/qingdao |
Highlight: | 1100 aluminium discs circles,aluminium discs circles 1100,cooking utensils aluminium discs circles |

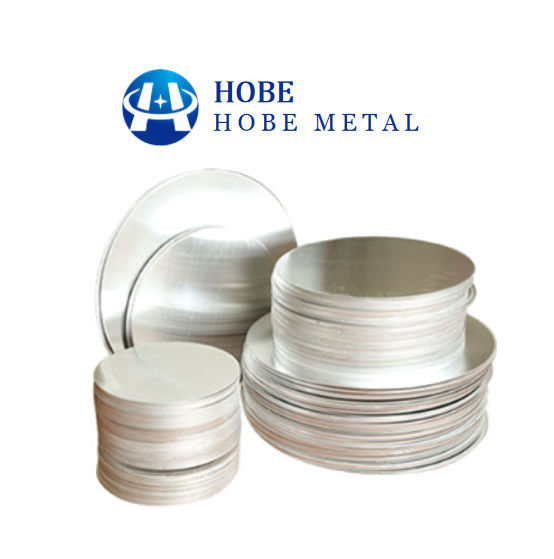

1100 Series Aluminum Products Rolling Machine Materials Non Stick Coated Aluminum Circle And Wafer For Cooking Utensils
Aluminum Circle/Disc is mainly used for general commercial and industrial uses, like the capacitor case, toothpaste case, medical tubes, kitchen ware, spray bottle, cosmetic case and glue tube case etc. With high quality casting and rolling coils or hot-rolled coils as raw materials ,it goes through different cold rolling deformation. slitting, annealing and finally stamping into an aluminum disc, then packaging for delivery.
Description:
The properties of aluminum circle for pots, cookware, nonstick aluminium circle (or shaped blanks) make them ideal for use in a number of markets including the cookware, automotive and lighting industries etc
1. Low anisotropy, which facilitates deep drawing
2. Strong mechanical properties
3. High and homogeneous heat diffusion
4. Ability to be enameled, covered by PTFE (or others), anodized
5. Good reflectivity
6. High strength-to-weight ratio
7. Durability and resistance to corrosion
Specification
pecification | aluminium sheet circle | ||||||||||||
Alloy: 1050, 1060,1070, 1100, 1200,3003 ,6061 etc. | |||||||||||||
Temper: T6 O, H12, H22, H14, H24, H26, H18 etc. | |||||||||||||
Thickness: 0.2-200mm | |||||||||||||
Width: Up to 1800mm | |||||||||||||
Length: Up to 6000mm | |||||||||||||
Surface treatment: mill finished, anodized, embossed, PVC coated | |||||||||||||
Feature | Price is much more competitive than that of other series. | ||||||||||||
Satisfy regular industrial process of stamping, drawing with good elongation, tensile strength and high formability. | |||||||||||||
Great plasticity, corrosion resistance, electrical conductiviy and termal conductivity. | |||||||||||||
Easy to be welded. | |||||||||||||
Easy to be pressure processed, extended and bent. | |||||||||||||
Application | Sign board, Advertising board, Building decoration, Car body, Cooking utensil, Lamp holder, Fan leaf, Electrical part, Chemical instrument, Machined part, Deep-drawn or spinned part, Welded part, Heat exchanger, Clock surface, Decotation, Reflective instrument etc. | ||||||||||||
Alloy | Chemical Component %≤ | ||||||||||||
Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | others | Al | |||
single | total | ||||||||||||
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 99.50 | ||||
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | 0.03 | 99.60 | ||||
1100 | 0.95 | 0.05-0.2 | 0.05 | 0.1 | 0.05 | 0.15 | 99.00 | ||||||
1200 | 1.00 | 0.05 | 0.05 | 0.1 | 0.05 | 0.05 | 0.15 | 99.00 |
Application of cookware Aluminium circle:
The factory to show:
1. Factory direct sells, with competitive price.
2. Quick delivery time, according to the clinet's demand
3. Expert in producing cold rolled and hot rolled aluminium circles
4. Can supply small trial orders
5. Many years producing technology to supply high quality products
6. Quick reply on the customer's questions
Contact Person: Miss. Zhang
Tel: 0086 13523021650
Fax: 86-371-85610107
