Place of Origin: | China |
Brand Name: | Hobe |
Certification: | CO |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Pallet or Wooden Case |
Delivery Time: | 15-21 days |
Payment Terms: | L/C, T/T, D/P, Western Union,Cash |
Supply Ability: | 1500Ton per Month |
Material: | Aluminium | Alloy: | 3003 3005 |
---|---|---|---|
Thickness: | 2.0-4.5mm, Others Also Available | Diameter: | 4 Inch Above |
Surface: | Mill Finish, Polished Or Coated | Application: | Cookware |
Highlight: | aluminum discs,aluminium disk |
Quick Detal:

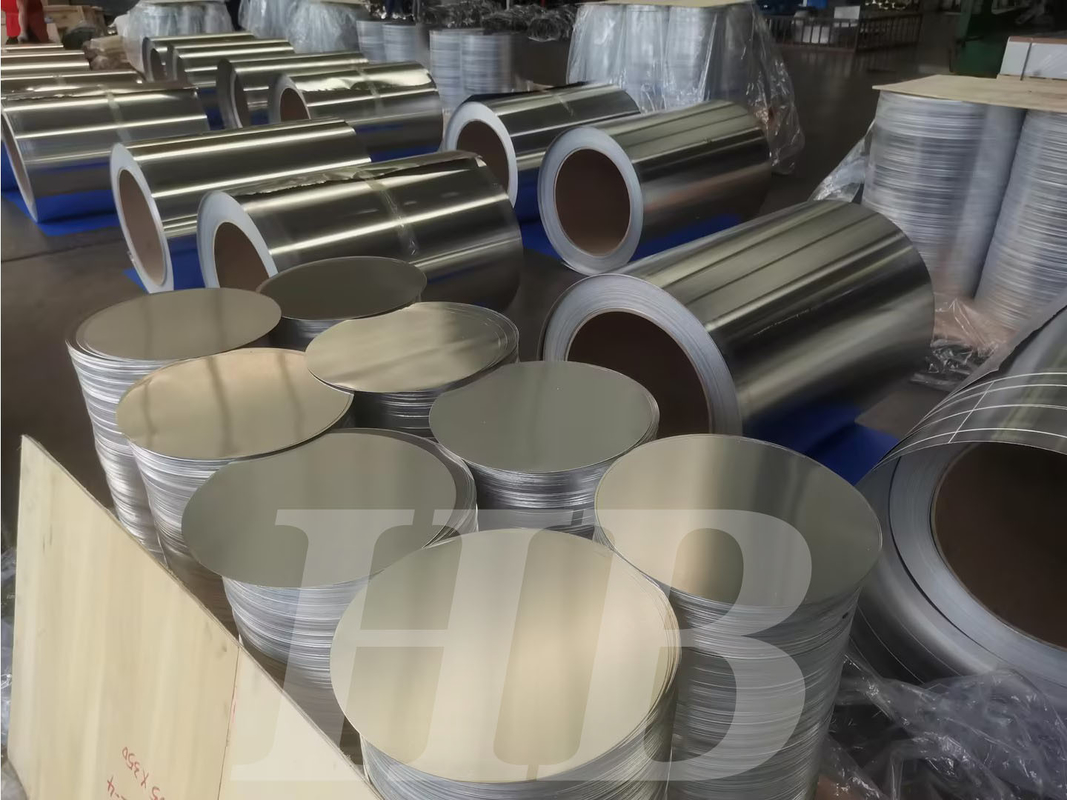

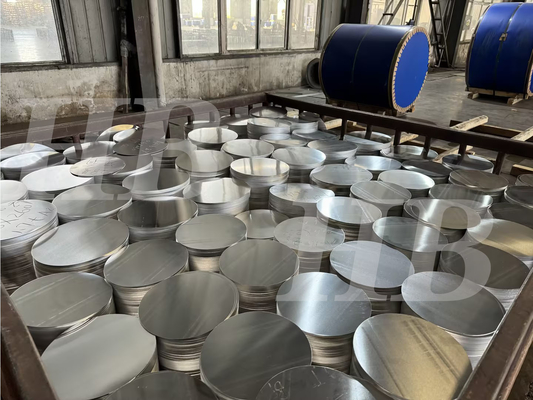

There are three qualities in Aluminium Circles:
Aluminium Circles Spinning Quality
Aluminium Circles Non Stick Quality
Aluminium Circles white polish qulaity
Description:
Due to vast applications of Aluminum Circles, We manufacture them by using high quality aluminum. These circles are very strong and are available in different diameters as per the requirements of the clients. We pack them in proper packages which will not cause any damage to the products during delivery. Our customers can avail these products in bulk and will not have to wait, as we can supply them immediately.
1) Alloy : AA1050 / AA1060 / AA1070 / AA1100 / AA1200 / AA3003 etc
2) Temper: O H12 H14 H16 H18 H22 H24 H26 H28
3) Thickness: 0.3mm--6mm
4) Diameter: 50mm-1500mm
5) Main application: Road signs,cookware,lighting,closures,Pan,cooking utensils, food processing equipment, storage tanks, truck and trailer components, aircraft components,utensils
6) Quality of material:
Totally free from defects like White Rust, Oil Patches, Roll Marks, Edge Damage, Camber, Dents, Holes, Break Lines, Scratches and free from circle set.
7) Surface Finish:
Bright & smooth surface, without flow lines, slightly oiled to avoid White rusting
8) Payment term:T/T,L/C
9) Packing: Standard Export Packaging or According to Customers' Requirements
Surface
Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Discoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use
Surface without black line, clean cut, periodic stain, roller printing defects, such as other gko internal Control standards.
You can't see any tiny space between the plates when they are piled up. And the surface is smoothly without freckles.
Work ability (Attributes)
Resistance against corrosion
Excellent formability
Excellent welding characteristics
Excellent ductile property
Excellent resistance to corrosion
Excellent conductivity
Producing Procedure from Aluminum Ingot to Aluminum Circles:
Specifications:
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca | V | Ti | Other | Min Al |
1050 | 0.24 | 0.40 | 0.05 | 0.05 | 0.06 | / | / | 0.05 | / | 0.05 | 0.03 | 0.03 | 99.5 |
1060 | 0.25 | 0.36 | 0.05 | 0.03 | 0.02 | / | / | 0.05 | / | 0.05 | 0.03 | 0.03 | 99.6 |
1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | / | / | 0.05 | / | 0.05 | 0.03 | 0.03 | 99.7 |
1100 | 0.95 | 0.94 | 0.05-0.2 | 0.06 | / | / | / | / | / | / | / | 0.05 | 99.0 |
3003 | 0.61 | 0.70 | 0.5-0.2 | 1.0-1.5 | / | / | / | / | / | / | / | 0.14 | 96.75 |
5052 | 0.40 | 0.40 | 0.10 | 0.11 | 2.2-2.8 | 0.15-0.35 | / | 0.10 | / | / | / | 0.14 | Remain |
Applications:
Mostly for cookware and utensils
Partical for Chemical equipment, ductwork, and in general sheet metal work, cooking utensils, pressure vessels, builder's hardware, eyelet stock, ice cube trays, garage doors, awning slats, refrigerator panels, gas lines, gasoline tanks, heat exchangers, drawn and spun parts, and storage tanks etc.
Competitive Advantage:
1. High Quality
2. Competitive price
3. Quick delivery
