Place of Origin: | China |
Brand Name: | Hobe |
Certification: | CO |
Model Number: | 1050 1060 1070 1100 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Pallet or Wooden Case |
Delivery Time: | 15-21 days |
Payment Terms: | L/C, T/T, D/P, Western Union,Cash |
Supply Ability: | 1500Ton per Month |
Product: | Cookware Aluminum Sheet Circles | Alloy: | 1100 1050 1060 |
---|---|---|---|
Temper: | O H22 And Etc | Technology: | Direct Casting |
Package: | Export Wooden Case | Thinkness: | 0.3-6mm |
Diameter: | 80-1600mm | ||
Highlight: | h22 aluminium discs circles,1050 aluminium discs circles,0.3mm aluminium discs circles |
Quick Detal:

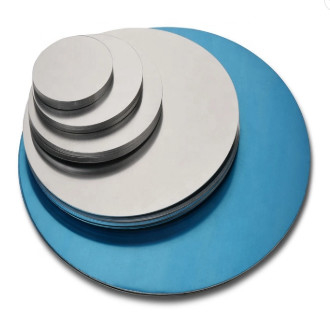

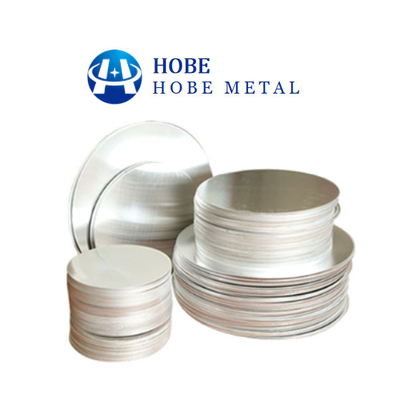

Aluminum Circle/Disc is mainly used for general commercial and industrial uses, like the capacitor case, toothpaste case, medical tubes, kitchen ware, spray bottle, cosmetic case and glue tube case etc. With high quality casting and rolling coils or hot-rolled coils as raw materials ,it goes through different cold rolling deformation. slitting, annealing and finally stamping into an aluminum disc, then packaging for delivery.
Description:
We are a factory, not a trader.
There are many traders who cooperate with us. They often place orders in our factory
We are the most professional aluminum wafer factory.
We cooperate with Chalco.
Our products have excellent tensile properties. quality. Low price. Thickness tolerances are also very small.
Features:
Longer service life
Sturdy design
Easy to use
The properties of aluminum circle for pots, cookware, nonstick aluminium circle (or shaped blanks) make them ideal for use in a number of markets including the cookware, automotive and lighting industries etc
1. Low anisotropy, which facilitates deep drawing
2. Strong mechanical properties
3. High and homogeneous heat diffusion
4. Ability to be enameled, covered by PTFE (or others), anodized
5. Good reflectivity
6. High strength-to-weight ratio
7. Durability and resistance to corrosion
Aluminum circles is widely used in electronics, comestic, medicine, auto parts, home appliances, machine manfacturing, moulding, building and printing, especially for cookware, like non-stick pan, pressure cooker, and hardware, like lampshade, jacketing shall. Aluminum circle disc is the most widely used deep drawing products of aluminum alloy strip.
Chemical composition
Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al | |
1060 | 0.250 | 0.350 | 0.050 | 0.030 | 0.030.- | - | 0.050 | 0.030 | 99.6 |
1070 | 0.200 | 0.250 | 0.040 | 0.030 | 0.030 | - | 0.040 | 0.030 | 99.7 |
1100 | Si+Fe:0.95 | 0.05-0.2 | 0.050 | - | - | 0.100 | - | 99.0 | |
3003 | 0.600 | 0.700 | 0.05-0.20 | 1.0-1.5 | - | - | 0.100 | - | remains |
3105 | 0.600 | 0.700 | 0.300 | 0.30-0.8 | 0.20-0.8 | 0.200 | 0.400 | 0.100 | remains |
5052 | 0.250 | 0.400 | 0.100 | 0.100 | 2.2-2.8 | 0.15-0.35 | 0.100 | - | remains |
5154 | 0.250 | 0.400 | 0.100 | 0.100 | 3.1-3.9 | 0.15-0.35 | 0.200 | 0.200 | remains |
5754 | 0.400 | 0.400 | 0.100 | 0.500 | 2.6-3.6 | 0.300 | 0.200 | 0.150 | remains |
5182 | 0.200 | 0.350 | 0.150 | 0.20-0.50 | 4.0-5.0 | 0.100 | 0.250 | 0.100 | remains |
6061 | 0.3-0.7 | 0.500 | 0.100 | 0.030 | 0.35-0.8 | 0.030 | 0.100 | - | remains |
8011 | 0.5-0.9 | 0.6-1.0 | 0.100 | 0.200 | 0.050 | 0.050 | 0.100 | 0.080 | remains |
8079 | 0.200 | 0.300 | 1.0-1.6 | 0.100 | 0.6-1.3 | 0.100 | 0.250 | 0.100 | remains |
Product Features of cookware Aluminium circle:
a. Wide range of selection on circles' size including customized shape and size;
b. Excellent deep drawing and spinning quality;
c. RoHS and REACH compliance.
Manufacturing of cookware Aluminium circle:
Specification
pecification | aluminium sheet circle | ||||||||||||
Alloy: 1050, 1060,1070, 1100, 1200,3003 ,6061 etc. | |||||||||||||
Temper: TO, H12, H22, H14, H24, H26, H18 etc. | |||||||||||||
Thickness: 0.2-200mm | |||||||||||||
Width: Up to 1800mm | |||||||||||||
Length: Up to 6000mm | |||||||||||||
Surface treatment: mill finished, anodized, embossed, PVC coated | |||||||||||||
Feature | Price is much more competitive than that of other series. | ||||||||||||
Satisfy regular industrial process of stamping, drawing with good elongation, tensile strength and high formability. | |||||||||||||
Great plasticity, corrosion resistance, electrical conductiviy and termal conductivity. | |||||||||||||
Easy to be welded. | |||||||||||||
Easy to be pressure processed, extended and bent. | |||||||||||||
Application | Sign board, Advertising board, Building decoration, Car body, Cooking utensil, Lamp holder, Fan leaf, Electrical part, Chemical instrument, Machined part, Deep-drawn or spinned part, Welded part, Heat exchanger, Clock surface, Decotation, Reflective instrument etc. | ||||||||||||
Alloy | Chemical Component %≤ | ||||||||||||
Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | others | Al | |||
single | total | ||||||||||||
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 99.50 | ||||
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | 0.03 | 99.60 | ||||
1100 | 0.95 | 0.05-0.2 | 0.05 | 0.1 | 0.05 | 0.15 | 99.00 | ||||||
1200 | 1.00 | 0.05 | 0.05 | 0.1 | 0.05 | 0.05 | 0.15 | 99.00 |
Application of cookware Aluminium circle:
Competitive Advantage:
