Place of Origin: | China |
Brand Name: | Hobe |
Certification: | ISO/ROHS/SGS |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Pallet or Wooden Case |
Delivery Time: | 10-20 days |
Supply Ability: | 1000Ton per Month |
Material: | Aluminium | Alloy: | 1070-O |
---|---|---|---|
Thickness: | 1.55mm 1.65mm | Diameter: | 330mm And Etc |
Surface: | Mill Finished | Edge: | Smooth |
High Light: | aluminum discs,aluminium disk |
Quick Detal:

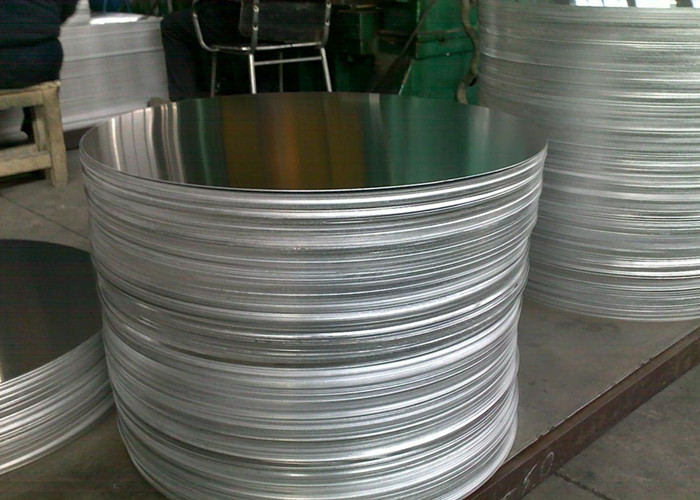

1) Aluminium circles for kitchen and cookware
2) Alloy and Temper : 1100 1050 3003 O H12 H14
3) Surface Treatment: Mill Finished
4) Use: used for making kitchen and cookwares MOQ: 500 kgs per size
5) Packing: paper and plastic bag wrapped in wooden box or on wooden pallet
Description:
Our aluminum circle had widely used in all over the China and other Countries.
We are proud of our aluminum circle excellent quality, quality Leads To Win The Future.
We also could undertake many kinds of custom sizes. As we are manufacturer, we could provide goods with high quality and low price.
1. Specifications: | ||||||||||
Name: Aluminium Circles | ||||||||||
Alloy: 1050,1060,1070,1100,1200,3003 | ||||||||||
Temper: HO,H12,H14,H16,H18,H22,H24,H26 | ||||||||||
Thickness: 0.4mm-6.0mm | ||||||||||
Diameter: 120mm-1300mm | ||||||||||
Length: Circle | ||||||||||
MOQ: 1.0metric tons per size,2 metric tons per order | ||||||||||
Package: Sea-Worthy Wooden case,with paper interleave,plastic film before wooden package;about 0.50-1.25metric tons per package;20-25metric tons per 20feet container | ||||||||||
Samples are free! | ||||||||||
2. Chemical Composition(%) | ||||||||||
Chemical Composition (WT.%) | ||||||||||
Alloy | Min.AL | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca |
1050 | 99.5 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | --- | --- | 0.05 | --- |
1060 | 99.6 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | --- | --- | 0.05 | --- |
1070 | 99.7 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | -- | --- | 0.04 | --- |
1100 | 99 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | --- | -- | --- | 0.1 | --- |
Mechanical Properties | ||||||||||
TEMPER | THICKNESS(mm) | TENSILE STRENGTH | ELONGATION% | |||||||
HO | 0.55-5.50 | 60-100 | ≥ 20 | |||||||
H12 | 0.55-5.50 | 70-120 | ≥ 4 | |||||||
H14 | 0.55-5.50 | 85-120 | ≥ 2 | |||||||
3. Price: FOB or CIF or DAP | ||||||||||
4. Payment term:100% irrevocable LC at sight or TT,30% as deposit;70% agaisnt BL copy | ||||||||||
5. Delivery time:within 15~30 days after received LC or deposit | ||||||||||
6. Price Validity:3 days | ||||||||||
7. Factory Capacity:200 tons per week |
Producing Procedure from Aluminum Ingot to Aluminum Circles:
Specifications:
Diameter List
≧20 | ≧140 | ≧170 | ≧200 | ≧250 | ≧300 | ≧400 | ≧500 | ≧600 | ≧700 | ≧800 |
20 | 140 | 170 | 200 | 250 | 300 | 400 | 500 | 600 | 700 | 800 |
25 | 145 | 175 | 205 | 252 | 305 | 405 | 505 | 605 | 705 | 805 |
95 | 150 | 180 | 210 | 254 | 310 | 410 | 510 | 610 | 710 | 810 |
100 | 155 | 185 | 215 | 255 | 315 | 415 | 515 | 615 | 715 | 815 |
105 | 160 | 190 | 220 | 258 | 320 | 420 | 520 | 620 | 720 | 820 |
110 | 165 | 195 | 225 | 260 | 325 | 425 | 525 | 625 | 725 | 825 |
115 | 230 | 330 | 430 | 530 | 630 | 730 | 830 | |||
120 | 235 | 335 | 435 | 535 | 635 | 735 | 835 | |||
125 | 240 | 340 | 440 | 540 | 640 | 740 | 840 | |||
130 | 245 | 345 | 445 | 545 | 645 | 745 | 845 | |||
135 | 350 | 450 | 550 | 650 | 750 | 850 | ||||
355 | 455 | 555 | 655 | 755 | 900 | |||||
360 | 460 | 560 | 660 | 760 | 950 | |||||
365 | 465 | 565 | 665 | 765 | 1000 | |||||
370 | 470 | 570 | 670 | 770 | 1050 | |||||
375 | 475 | 575 | 675 | 775 | 1100 | |||||
380 | 480 | 580 | 680 | 780 | 1150 | |||||
385 | 485 | 585 | 685 | 785 | 1200 | |||||
390 | 490 | 590 | 690 | 790 | 1250 | |||||
395 | 495 | 595 | 695 | 795 | 1300 |
Applications:
Cans,closures,Pan,cooking utensils, food processing equipment, storage tanks, truck and trailer components, mailboxes, aircraft components, electronic chassis, boat hulls, deck houses, hatch covers, pressure vessels, ladders, railings, frames, drip pans, tool boxes, truck bumpers, inner and outer body panels and components in truck and auto industries, kitchen equipment, decorative trim, architectural uses, signage applications,and any number of parts and application requiring strength and good formability at reasonable cost.
Competitive Advantage:
1. Wide range of selection on circle’s size including customized shape and size.
2. Excellent surface quality for lighting reflectors.
3. Excellent deep drawing and spanning quality.
4. We provide heavy guage circles with thickness up to 6mm thick which is deal for cookware.
5. Anodized quality and deep drawing quality which is suitable for cookware as well.
6. Well- protected packing.
