HENAN HOBE METAL MATERIALS CO.,LTD.
Professional aluminium discs circles producer!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Hobe |
| Certification: | ISO/ROHS/SGS |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Pallet or Wooden Case |
| Delivery Time: | 15-30 days |
| Supply Ability: | 1000Ton per Month |

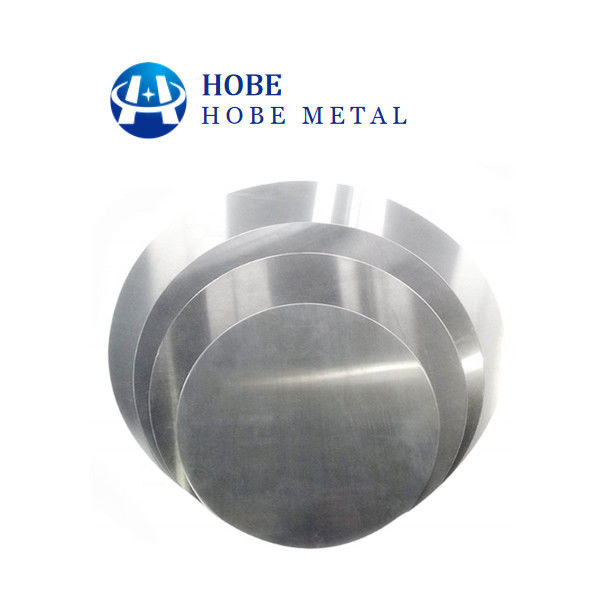

| Product: | Aluminum Disk Blank | Alloy: | 1050, 3003 And Etc |
|---|---|---|---|
| Thickness: | 1/16 Inch | Diameter: | 12 Inch, 15 Inch |
| Temper: | O, H14, H22 And Etc | Technology: | Deep Spining |
| High Light: | blank aluminum discs,blank aluminium discs |
||
Quick Detal:
| Product name | Alumimun Disk Blank |
| Material | 1050, 3003 and Etc |
| Tempers | O, H14, H22, H24, H18 and Etc |
| Application | cookware, road sign and etc |
| Standard | China Nation Standard GB 3880-2006, ASTM, EN |
Description:
Aluminum circles is widely used in electronics, comestic, medicine, auto parts, home appliances, machine manfacturing, moulding, building and printing, especially for cookware, like non-stick pan, pressure cooker, and hardware, like lampshade, jacketing shall. Aluminum circle disc is the most widely used deep drawing products of aluminum alloy strip.
1. Alloy: 1050, 3003, 8011
2. Temper: O,H12,H14,H16,H18,H19,H22,H24,H26
3. Hardness: 26 ~ 29
4. Elongation Percentage: 36% ~ 45%
5. Surface Treatment: Coated or Non-Coated
6. Thickness: 0.50mm ~ 6mm
7. Diameter: 100mm - 1520mm
8. Type: Discs, Circle

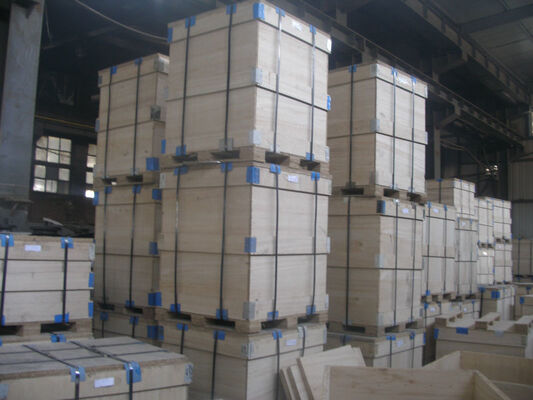

Packing & shipment:
Standard wooden pallet for exporting seaworthy or according to your requirement
Shipping: about 25 days after receipt advance
Chemical composition
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al | |
| 1060 | 0.250 | 0.350 | 0.050 | 0.030 | 0.030.- | - | 0.050 | 0.030 | 99.6 |
| 1070 | 0.200 | 0.250 | 0.040 | 0.030 | 0.030 | - | 0.040 | 0.030 | 99.7 |
| 1100 | Si+Fe:0.95 | 0.05-0.2 | 0.050 | - | - | 0.100 | - | 99.0 | |
| 3003 | 0.600 | 0.700 | 0.05-0.20 | 1.0-1.5 | - | - | 0.100 | - | remains |
| 3105 | 0.600 | 0.700 | 0.300 | 0.30-0.8 | 0.20-0.8 | 0.200 | 0.400 | 0.100 | remains |
| 5052 | 0.250 | 0.400 | 0.100 | 0.100 | 2.2-2.8 | 0.15-0.35 | 0.100 | - | remains |
| 5154 | 0.250 | 0.400 | 0.100 | 0.100 | 3.1-3.9 | 0.15-0.35 | 0.200 | 0.200 | remains |
| 5754 | 0.400 | 0.400 | 0.100 | 0.500 | 2.6-3.6 | 0.300 | 0.200 | 0.150 | remains |
| 5182 | 0.200 | 0.350 | 0.150 | 0.20-0.50 | 4.0-5.0 | 0.100 | 0.250 | 0.100 | remains |
| 6061 | 0.3-0.7 | 0.500 | 0.100 | 0.030 | 0.35-0.8 | 0.030 | 0.100 | - | remains |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.100 | 0.200 | 0.050 | 0.050 | 0.100 | 0.080 | remains |
| 8079 | 0.200 | 0.300 | 1.0-1.6 | 0.100 | 0.6-1.3 | 0.100 | 0.250 | 0.100 | remains |
Product Features of cookware Aluminium circle:
a. Wide range of selection on circles' size including customized shape and size;
b. Excellent deep drawing and spinning quality;
c. RoHS and REACH compliance.
Manufacturing of cookware Aluminium circle:
Aluminium sheet - Punch - Aluminium Circles
Specification
| pecification | aluminium sheet circle | ||||||||||||
| Alloy: 1050, 1060,1070, 1100, 1200,3003 ,6061 etc. | |||||||||||||
| Temper: T6 O, H12, H22, H14, H24, H26, H18 etc. | |||||||||||||
| Thickness: 0.2-200mm | |||||||||||||
| Width: Up to 1800mm | |||||||||||||
| Length: Up to 6000mm | |||||||||||||
| Surface treatment: mill finished, anodized, embossed, PVC coated | |||||||||||||
| Feature | Price is much more competitive than that of other series. | ||||||||||||
| Satisfy regular industrial process of stamping, drawing with good elongation, tensile strength and high formability. | |||||||||||||
| Great plasticity, corrosion resistance, electrical conductiviy and termal conductivity. | |||||||||||||
| Easy to be welded. | |||||||||||||
| Easy to be pressure processed, extended and bent. | |||||||||||||
| Application | Sign board, Advertising board, Building decoration, Car body, Cooking utensil, Lamp holder, Fan leaf, Electrical part, Chemical instrument, Machined part, Deep-drawn or spinned part, Welded part, Heat exchanger, Clock surface, Decotation, Reflective instrument etc. | ||||||||||||
| Alloy | Chemical Component %≤ | ||||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | others | Al | |||
| single | total | ||||||||||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 99.50 | ||||
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | 0.03 | 99.60 | ||||
| 1100 | 0.95 | 0.05-0.2 | 0.05 | 0.1 | 0.05 | 0.15 | 99.00 | ||||||
| 1200 | 1.00 | 0.05 | 0.05 | 0.1 | 0.05 | 0.05 | 0.15 | 99.00 | |||||
Application of cookware Aluminium circle:
Regulatory signs
Warning signs
Guide signs
Street signs
Route markersigns
Expresswaysigns
Freewaysigns
Welcome Signs
Informational signs
Recreation and cultural interest signs
Emergency management(civil defense) signs
Temporary traffic control (construction or work zone) signs
Schoolsigns
Railroad and light rail signs
Bicycle signs
We offer a full package for the international traffic sign market: our aluminium disc products can be delivered either as coil, sheet or blank forms.
Competitive Advantage:
1. Factory direct sells, with competitive price.
2. Quick delivery time, according to the clinet's demand
3. Expert in producing cold rolled and hot rolled aluminium circles
4. Can supply small trial orders
5. Many years producing technology to supply high quality products
6. Quick reply on the customer's questions
Contact Person: Mr. Wang
Tel: 0086 158 3839 9105
Fax: 86-371-85610107
