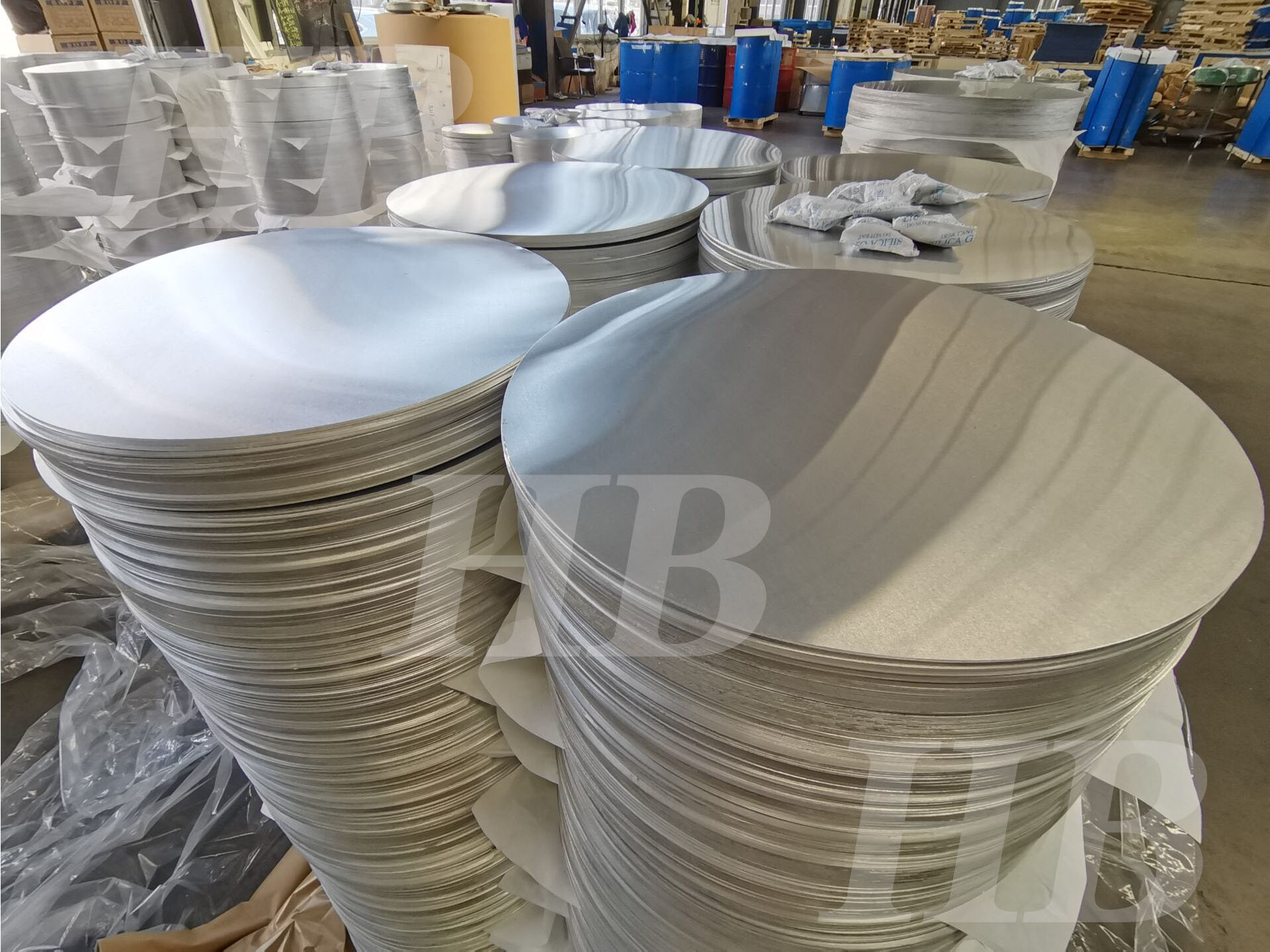

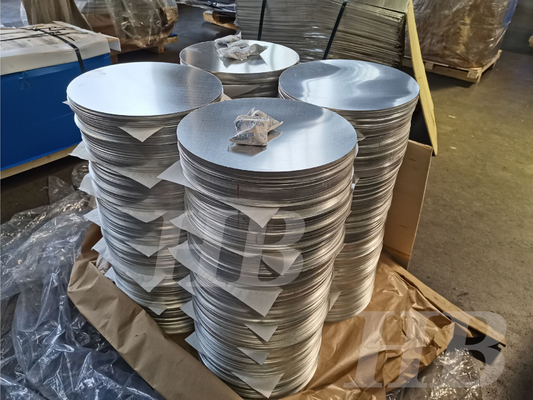

Cold Rolled CC 1000 Series Aluminum Circle Sheet Temper HO High Thermal Conductivity

Cold Rolled CC 1000 Series Aluminum Circle Sheet Temper HO High Thermal Conductivity
Cold Rolled CC 1000 Series Aluminum Circle Sheet Temper HO High Thermal Conductivity Cold Rolled CC 1000 Series Aluminum Circle Sheet Temper HO High Thermal Conductivity

Large Image :  Cold Rolled CC 1000 Series Aluminum Circle Sheet Temper HO High Thermal Conductivity

Product Details:

Place of Origin: China
Brand Name: Hobe
Certification: ISO/ROHS/SGS
Model Number: 1050 1060 1070 1100 3003 8011

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Pallet or Wooden Case
Delivery Time: 15-25days
Supply Ability: 1000Ton per Month
Detailed Product Description
Product: Aluminum Sheet Circles Alloy: 1050
Purity: 99.50 Temper: HO
Technology: Cold Rolled CC Application: Cookware Or Lighting
High Light:

aluminium circles

,

aluminum disks


Cold Rolled CC 1000 Series Aluminum Circle Sheet Temper HO High Thermal Conductivity





Quick Detal:



1. Low anisotropy, which facilitates deep drawing
2. Strong mechanical properties
3. High and homogeneous heat diffusion
4. Ability to be enameled, covered by PTFE (or others), anodized



Description:



Commercially pure aluminum (1000-series aluminum, which is 99.9%+ pure) has the highest of thermal conductivity all aluminum alloys, but due to the “orange peel effect” where bonded pure aluminum can form bumps and ridges similar to orange peels due to the nature of its grain, it is not viable to use ONLY pure aluminum as the core of a cladded material (few customers would accept bumpy-looking cookware).  Thus, typically you will see a construction like so: stainless steel, a very thin bonding layer of pure aluminum, a core of 3003 or 3004 aluminum, a very thin bonding layer of pure aluminum, and stainless steel. 3003/3004 aluminum has significantly lower thermal conductivity than pure aluminum, but you also avoid the orange peel effect.


If you are wondering why cookware manufacturers use 3003/3004 aluminum instead of some other aluminum alloys that have slightly higher thermal conductivity, it is because 3003/3004 aluminum is inexpensive, is easily formed (i.e., made into different shapes and sizes of cookware), has durability/strength good enough for kitchen cooking, and is more corrosion-resistant than many other aluminum alloys. That last factor is very important, since commercial and residential cookware is continually being banged into drawers/sinks/stovetops and being left with water, saltwater, and acids in them at all sorts of temperatures.



Aluminum circles is widely used in electronics, comestic, medicine, auto parts, home appliances, machine manfacturing, moulding, building and printing, especially for cookware, like non-stick pan, pressure cooker, and hardware, like lampshade, jacketing shall. Aluminum circle disc is the most widely used deep drawing products of aluminum alloy strip.



Aluminum circle Mechanical Property:


Chemical Composite and Mechanical Property could meet the requirements of GB/T, ASTM, ENAW, and JIS Standard


Aluminum circle Certificate:


ISO9001:2008, SGS and ROHS (if client request, paid by client), MTC(plant provided), Certificate of Origin(FORM A, FORM E, CO), Bureau Veritas and SGS (if client request, paid by client), CIQS certificate



Mechanical Properties
TEMPER    THICKNESS(mm)   TENSILE STRENGTH     ELONGATION%        Standard
HO                   0.35-10                      60-100                          ≥ 20               GB/T91-2002
H12                   0.5-10                       70-120                          ≥ 4                 GB/T91-2002
H14                   0.5-10                       85-120                          ≥ 2                 GB/T91-2002



Chemical composition



  Si Fe Cu Mn Mg Cr Zn Ti Al
1060 0.250 0.350 0.050 0.030 0.030.- - 0.050 0.030 99.6
1070 0.200 0.250 0.040 0.030 0.030 - 0.040 0.030 99.7
1100 Si+Fe:0.95 0.05-0.2 0.050 - - 0.100 - 99.0
3003 0.600 0.700 0.05-0.20 1.0-1.5 - - 0.100 - remains
3105 0.600 0.700 0.300 0.30-0.8 0.20-0.8 0.200 0.400 0.100 remains
5052 0.250 0.400 0.100 0.100 2.2-2.8 0.15-0.35 0.100 - remains
5154 0.250 0.400 0.100 0.100 3.1-3.9 0.15-0.35 0.200 0.200 remains
5754 0.400 0.400 0.100 0.500 2.6-3.6 0.300 0.200 0.150 remains
5182 0.200 0.350 0.150 0.20-0.50 4.0-5.0 0.100 0.250 0.100 remains
6061 0.3-0.7 0.500 0.100 0.030 0.35-0.8 0.030 0.100 - remains
8011 0.5-0.9 0.6-1.0 0.100 0.200 0.050 0.050 0.100 0.080 remains
8079 0.200 0.300 1.0-1.6 0.100 0.6-1.3 0.100 0.250 0.100 remains



Product Features of cookware Aluminium circle:

a. Wide range of selection on circles' size including customized shape and size;

b. Excellent deep drawing and spinning quality;

c. RoHS and REACH compliance.



Specification



pecification aluminium sheet circle
Alloy: 1050, 1060,1070, 1100, 1200,3003 ,6061 etc.
Temper: TO, H12, H22, H14, H24, H26, H18 etc.
Thickness: 0.2-200mm
Width: Up to 1800mm
Length: Up to 6000mm
Surface treatment: mill finished, anodized, embossed, PVC coated
Feature Price is much more competitive than that of other series.
Satisfy regular industrial process of stamping, drawing with good elongation, tensile strength and high formability.
Great plasticity, corrosion resistance, electrical conductiviy and termal conductivity.
Easy to be welded.
Easy to be pressure processed, extended and bent.
Application Sign board, Advertising board, Building decoration, Car body, Cooking utensil, Lamp holder, Fan leaf, Electrical part, Chemical instrument, Machined part, Deep-drawn or spinned part, Welded part, Heat exchanger, Clock surface, Decotation, Reflective instrument etc.
Alloy Chemical Component %≤
Si Fe Cu Mn Mg Cr Ni Zn Ti others Al
single total
1050 0.25 0.4 0.05 0.05 0.05     0.05 0.03 0.03   99.50
1060 0.25 0.35 0.05 0.03 0.03     0.05 0.03 0.03   99.60
1100 0.95 0.05-0.2 0.05       0.1   0.05 0.15 99.00
1200 1.00 0.05 0.05       0.1 0.05 0.05 0.15 99.00





Application of cookware Aluminium circle:



aluminium circle for pot making,

aluminium disk for pot,

Deep drawing cookware,

spinning cookware

aluminium circle,

pot circle,

cooking utensils,

cooker, pan,pot,boiler,

cookware making

road sign and traffic sign, and signal plate
