HENAN HOBE METAL MATERIALS CO.,LTD.
Professional aluminium discs circles producer!
Sales & Support:
Product Details:
Payment & Shipping Terms:
|

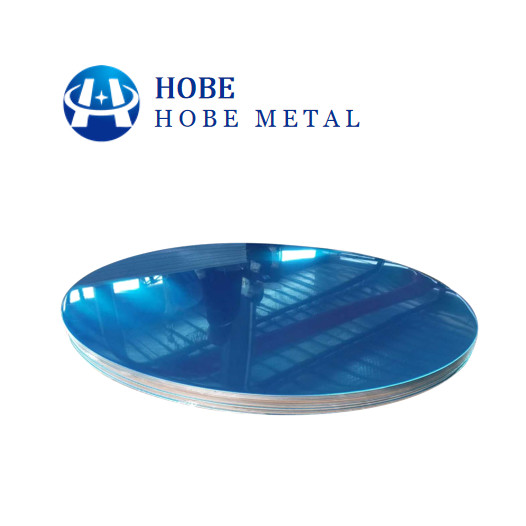

| Product: | Aluminum Sheet Circles | Alloy: | 1060,1070 |
|---|---|---|---|
| Thickness: | 1mm | Diameter: | 10.25 Inch |
| Temper: | O | Tolerance: | ISO Standard |
| High Light: | aluminium circles,aluminum disks |
||
Quick Detal:
| Product name | alumimun sheet Circle |
| Material | 1060 |
| Tempers | O |
| Application | aviation, marine, electric productions, trailer, machinery, construction. etc |
| Standard | China Nation Standard GB 3880-2006, ASTM, EN |
Description:
Aluminum circles is widely used in electronics, comestic, medicine, auto parts, home appliances, machine manfacturing, moulding, building and printing, especially for cookware, like non-stick pan, pressure cooker, and hardware, like lampshade, jacketing shall. Aluminum circle disc is the most widely used deep drawing products of aluminum alloy strip.
Grade: 1000 Series, 1xxx-, 8xxxSeries
Temper: O-H112
Type: Plate
Application: automotive, aerospace, military industry, mold, construction, printing, Aluminum cookware, pots, kettles, basins, lights and fryers
Thickness: 0.02-50mm
Width: under 900mm
Surface Treatment:Coated or Mill finish
Alloy Or Not:Is Alloy
Place of Origin: Henan, China (Mainland)
Brand Name: Hobe
Model Number: 1000,3000,5000,6000,8000
Name:china supplier aluminum disk
Diameter: 85-750mm,100-900mm
Series: 1,3,5,6,8
Shape: Round
Packing & shipment:
Standard wooden pallet for exporting seaworthy or according to your requirement
Shipping: about 25 days after receipt advance
Chemical composition
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al | |
| 1060 | 0.250 | 0.350 | 0.050 | 0.030 | 0.030.- | - | 0.050 | 0.030 | 99.6 |
| 1070 | 0.200 | 0.250 | 0.040 | 0.030 | 0.030 | - | 0.040 | 0.030 | 99.7 |
| 1100 | Si+Fe:0.95 | 0.05-0.2 | 0.050 | - | - | 0.100 | - | 99.0 | |
| 3003 | 0.600 | 0.700 | 0.05-0.20 | 1.0-1.5 | - | - | 0.100 | - | remains |
| 3105 | 0.600 | 0.700 | 0.300 | 0.30-0.8 | 0.20-0.8 | 0.200 | 0.400 | 0.100 | remains |
| 5052 | 0.250 | 0.400 | 0.100 | 0.100 | 2.2-2.8 | 0.15-0.35 | 0.100 | - | remains |
| 5154 | 0.250 | 0.400 | 0.100 | 0.100 | 3.1-3.9 | 0.15-0.35 | 0.200 | 0.200 | remains |
| 5754 | 0.400 | 0.400 | 0.100 | 0.500 | 2.6-3.6 | 0.300 | 0.200 | 0.150 | remains |
| 5182 | 0.200 | 0.350 | 0.150 | 0.20-0.50 | 4.0-5.0 | 0.100 | 0.250 | 0.100 | remains |
| 6061 | 0.3-0.7 | 0.500 | 0.100 | 0.030 | 0.35-0.8 | 0.030 | 0.100 | - | remains |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.100 | 0.200 | 0.050 | 0.050 | 0.100 | 0.080 | remains |
| 8079 | 0.200 | 0.300 | 1.0-1.6 | 0.100 | 0.6-1.3 | 0.100 | 0.250 | 0.100 | remains |
Product Features of cookware Aluminium circle:
a. Wide range of selection on circles' size including customized shape and size;
b. Excellent deep drawing and spinning quality;
c. RoHS and REACH compliance.
Manufacturing of cookware Aluminium circle:
Aluminium sheet - Punch - Aluminium Circles
Specification
| pecification | aluminium sheet circle | ||||||||||||
| Alloy: 1050, 1060,1070, 1100, 1200,3003 ,6061 etc. | |||||||||||||
| Temper: T6 O, H12, H22, H14, H24, H26, H18 etc. | |||||||||||||
| Thickness: 0.2-200mm | |||||||||||||
| Width: Up to 1800mm | |||||||||||||
| Length: Up to 6000mm | |||||||||||||
| Surface treatment: mill finished, anodized, embossed, PVC coated | |||||||||||||
| Feature | Price is much more competitive than that of other series. | ||||||||||||
| Satisfy regular industrial process of stamping, drawing with good elongation, tensile strength and high formability. | |||||||||||||
| Great plasticity, corrosion resistance, electrical conductiviy and termal conductivity. | |||||||||||||
| Easy to be welded. | |||||||||||||
| Easy to be pressure processed, extended and bent. | |||||||||||||
| Application | Sign board, Advertising board, Building decoration, Car body, Cooking utensil, Lamp holder, Fan leaf, Electrical part, Chemical instrument, Machined part, Deep-drawn or spinned part, Welded part, Heat exchanger, Clock surface, Decotation, Reflective instrument etc. | ||||||||||||
| Alloy | Chemical Component %≤ | ||||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | others | Al | |||
| single | total | ||||||||||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 99.50 | ||||
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | 0.03 | 99.60 | ||||
| 1100 | 0.95 | 0.05-0.2 | 0.05 | 0.1 | 0.05 | 0.15 | 99.00 | ||||||
| 1200 | 1.00 | 0.05 | 0.05 | 0.1 | 0.05 | 0.05 | 0.15 | 99.00 | |||||
Application of cookware Aluminium circle:
aluminium circle for pot making,
aluminium disk for pot,
Deep drawing cookware,
spinning cookware
aluminium circle,
pot circle,
cooking utensils,
cooker, pan,pot,boiler,
cookware making
road sign and traffic sign, and signal plate
Competitive Advantage:
1. Factory direct sells, with competitive price.
2. Quick delivery time, according to the clinet's demand
3. Expert in producing cold rolled and hot rolled aluminium circles
4. Can supply small trial orders
5. Many years producing technology to supply high quality products
6. Quick reply on the customer's questions
